Adira 10′ x 1/4″ Hydraulic Shear W/FOPBG

Manufacturer: Adira
Model: GHR-0630
Serial No: 4009/10545
Year: 2001
Categories: Mechanical Shears
Stock Number: 18341

Stock Number 18341 Categories: , Tags: ,


Machine Specs

Used Adira 10′ x 1/4″ Hydraulic Shear W/FOPBG

Capacity: 1/4″ (6.5 mm)
Max. Cutting Length: 10′ (3,080 mm)
Throat: 13″
Knife Size: 3/8″ x 2-3/8″
Back Gauge Range: 40″
No. Of Hold Downs: 16

Equipped With:

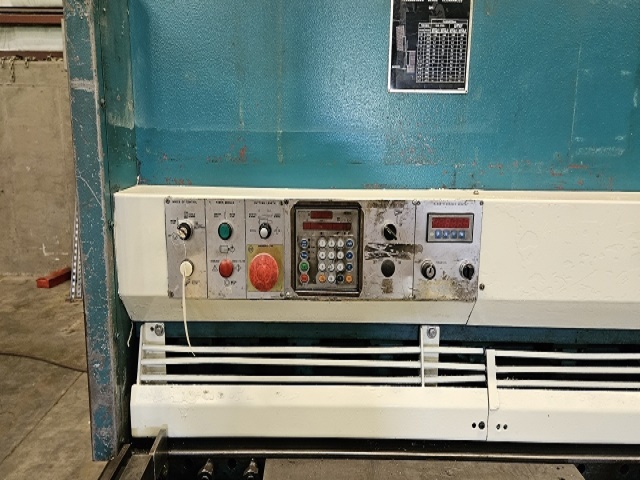

Adiramatic 2087 Programmable Backgauge Control
Adjustable Stroke Length
Powered Blade Gap Adjust: 0.001″ – 0.043″
Support Table for Thin Sheets
Foot Switch
102″ Squaring Arm
(3) Material Support Arms
Protractor
Electrical: 240/480V 3Ph
Currently Wired For 480V
Motor, Hyd.: 20 HP

Weight, Approximate: 13,250 Lbs.
Dimensions, Approximate: 160″ L-R x 98″ F-B x 70″ H
