Machine Specs

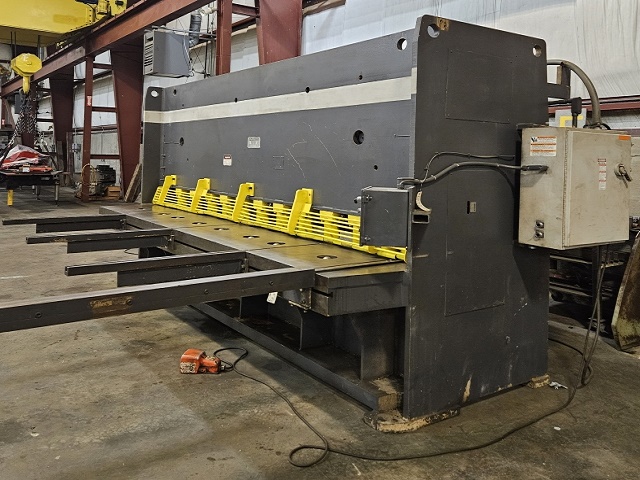

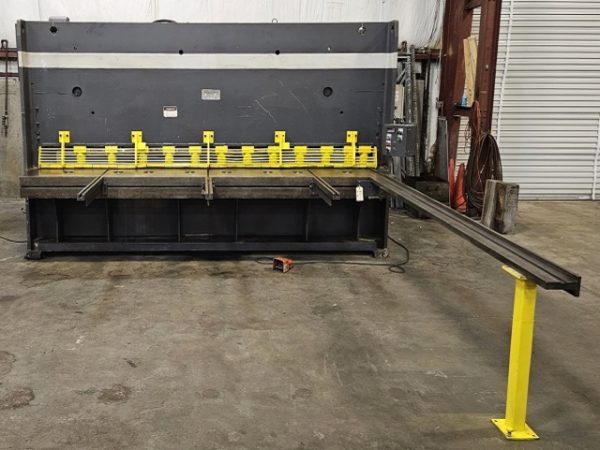

Used Standard Industrial Hydraulic Plate Shear
Capacity: 1/2″
Max. Cutting Length: 12′
Knife Size: 1″ x 4″
Back Gauge Range: 48″
No. of Hold Downs: 13
Electrics: 240/480V (Currently Wired 480V) 3Ph
Motor: 40 HP
Equipped With:

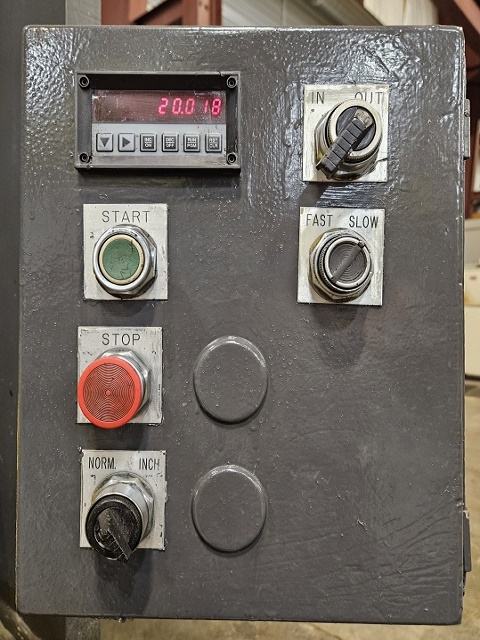

Front Operated Power Back Gauge
Powered Blade Gap 0.005″ – 0.035″
Adjustable Stroke Length
Foot Switch
10′ Squaring Arm
36″ Support Arms (3)
Ball Transfers Mounted in Table (8)
New Set of Blades
Overall Size, Approximately: 174″ L-R x 100″ F-B x 110″ H
Weight, Approximately: 42,000 Lbs.
