Machine Specs
Used

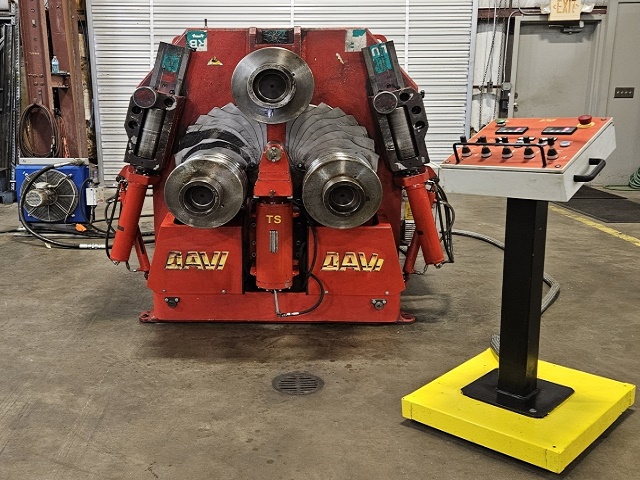

Davi 5″ × 5″ × 5/8″ — 3-Roll Double Pinch Angle Roll
Capacities
Angle Iron — Leg Out
5″ × 5″ × 5/8″ — Ø51″
Angle Iron — Leg In
5″ × 5″ × 1/2″ — Ø43″
Flat — On Flat
5″ × 1-1/4″ — Ø39″
Flat — On Edge
8-11/16″ × 2″ — Ø39″
Channel — Leg Out
8″ × 22.8# — Ø30″
Channel — Leg In
8″ × 22.8# — Ø35″
Std. Beam — Leg Out
8″ × 23# — Ø40″
Bar — Square
3-3/8″ — Ø47″
Bar — Round
3-9/16″ — Ø44″
Pipe — Sch. 40
5″ — Ø45″
Machine Specifications
Diameter of Bending Rolls
15-5/32″
Diameter of Shafts
5-1/2″
Variable Rolling Speed
23 FPM
Features

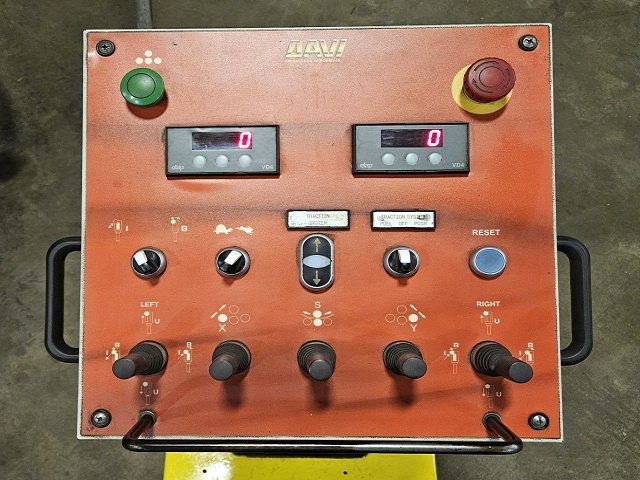

- Operator’s stand
- Three powered rolls
- Hydraulic pulling roll
- Bending & guide rolls with hydraulic powered adjustment
- Hydraulic aftercooler
- Well tooled
Electrical
Hydraulic Pump Motor
24 HP — 480 V, 3-phase, 60 Hz
Footprint & Weight
Overall Dimensions (Approx.)
96″ F-B × 72″ L-R × 66″ H
Weight (Approx.)
12,000 lbs
