Machine Specs
Used

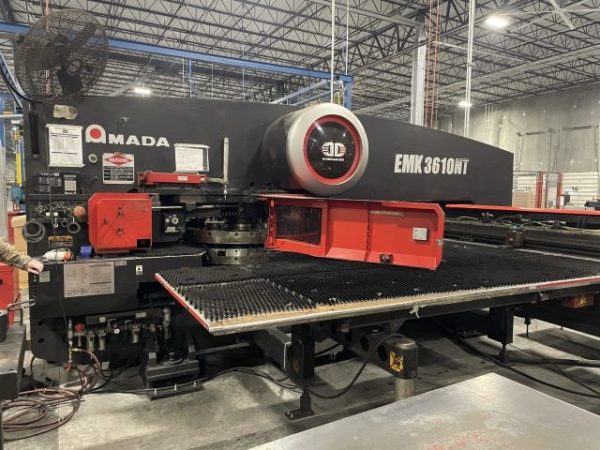

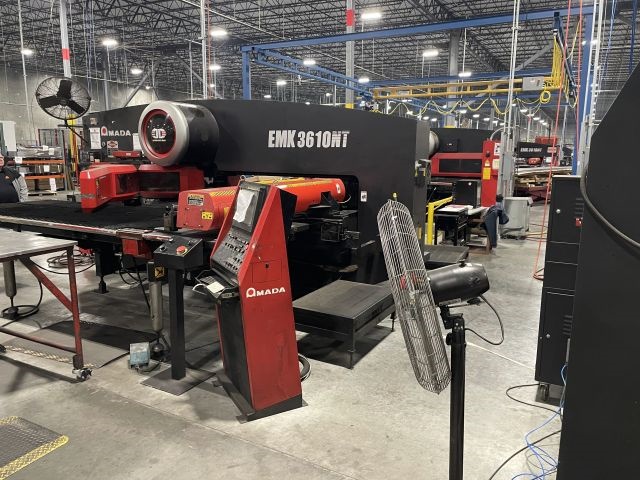

Amada EMK-3610NT Servo Drive (Electric) CNC Turret Punch
Capacity & Envelope
Capacity
33 tons
Max Sheet Size
120″ × 60″
Max Sheet Size (with Reposition)
240″ × 60″
Throat Depth
50″
Max Sheet Thickness
187″
Travels & Stroke
Travel (X-Axis)
120″
Travel (Y-Axis)
60″
Stroke
1.45″
Turret & Performance
Turret Stations
58 w/ (4) A/I
Turret Tooling Style
Thick
Turret Rotation Speed
30 RPM
Feed Clearance
0.984″
Equipped With
- NT control
- 58-station turret w/ (4) A/I
- (3) work clamps
- Brush table
- Slug conveyor
Footprint & Weight
Overall Dimensions (Approx.)
210″ L-R × 245″ F-B × 95″ H
Weight (Approx.)
44,000 lbs
