Machine Specs
Used

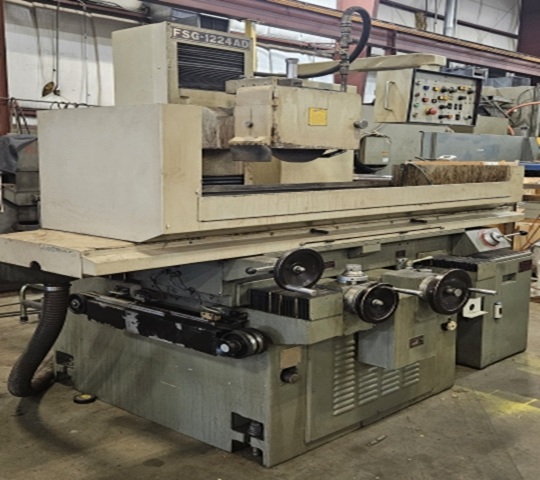

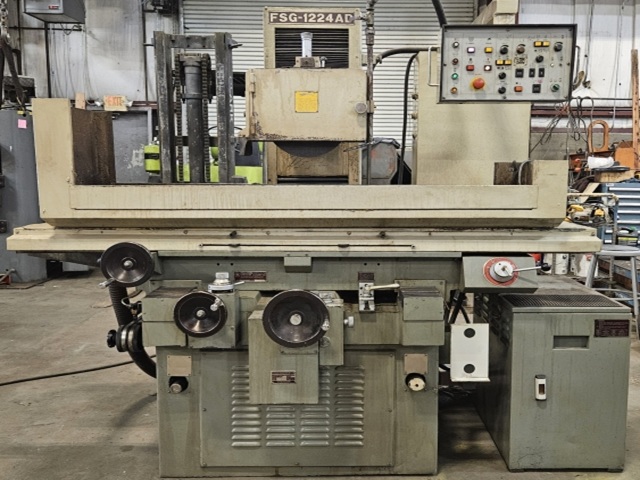

Chevalier 12″ × 24″ Automatic Surface Grinder
Grinding Capacity
Grinding Capacity
12″ × 24″
Spindle Centerline to Table Max
24″
Grinding Wheel Size
14″ × 2″ × 5″

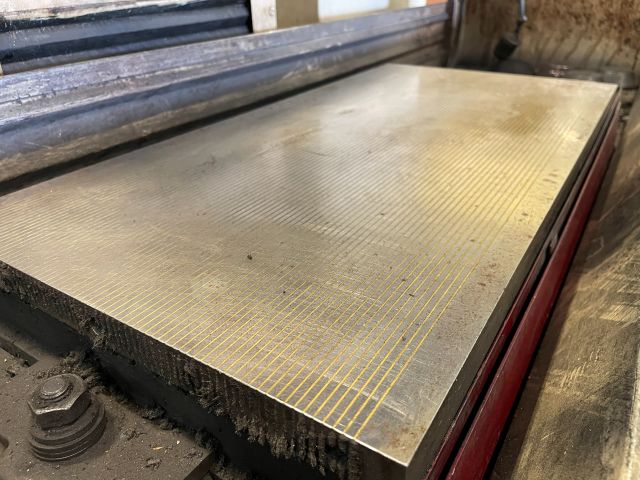

Electro-Magnetic Chuck Size
11-3/4″ × 23-5/8″
Table Travel & Feed
Longitudinal Table Travel
25-5/8″
Cross Table Travel
12″
Table Speed Variable
5 to 25 FPM
Incremental Down Feed
0.00005″ – 0.002″
Automatic Cross Feed
0.005 IPR
Power Elevation
8 FPM
Spindle
Spindle Speed
3,450 RPM
Spindle Motor
5 HP
Electrical & Motors
Electrics
240/480 V, 3 PH — currently wired 480V
Hydraulic Motor
2 HP
Equipped With
- 3 axis auto feed
- Coolant tank and pump
- Over-the-wheel dresser
- Electro-magnetic chuck
Footprint & Weight
Overall Size (Approx.)
100″ L-R × 60″ F-B × 80″ H
Weight (Approx.)
5,500 lbs
