Machine Specs
Used

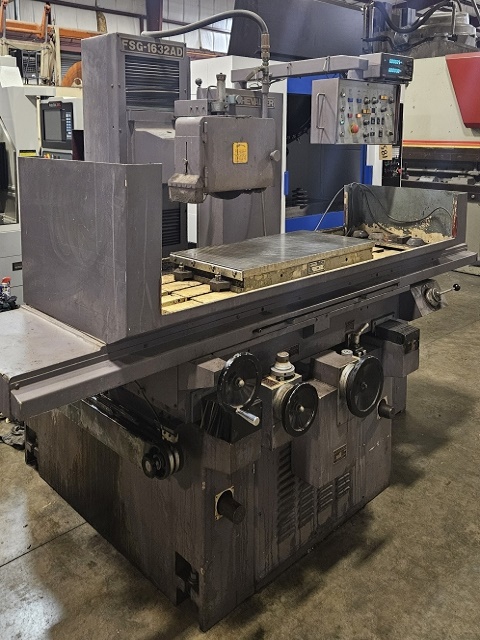

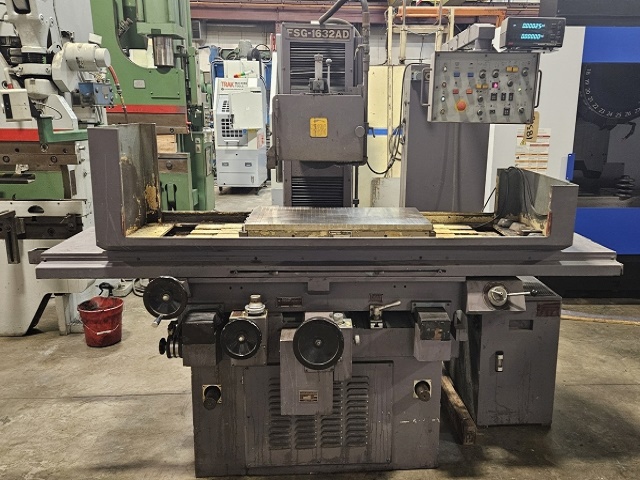

Chevalier 16″ × 32″ Automatic Surface Grinder
Capacity & Travels
Grinding Capacity
16″ × 32″
Spindle to Table (Max)
24″
Longitudinal Table Travel
35-3/8″
Cross Table Travel
18″
Table Speed (Variable)
5–25 FPM
Spindle & Wheel
Spindle Speed
3,450 RPM
Grinding Wheel Size
14″ × 2″ × 5″
Chuck & Table
Electro-magnetic Chuck Size
31-1/2″ × 15-3/4″
Feeds & Automation
Incremental Downfeed
0.00005″ – 0.002″
Automatic Crossfeed
0.005 IPR
Power Elevation
12 FPM
Automation
3-axis auto feed
Electrical & Motors
Electrics
240/480 V, 3-phase (currently wired 480 V)
Spindle Motor
5 HP
Hydraulic Motor
2 HP
Equipped With

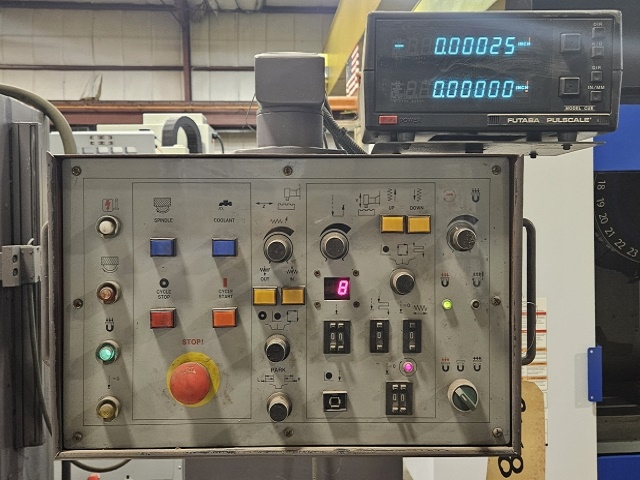

- Futaba DRO
- 3-axis auto feed
- Coolant with paper filtration
- Over-the-wheel dresser
- Electro-magnetic chuck with controls
Footprint & Weight
Overall Size (Approx.)
132″ L-R × 68″ F-B × 86″ H
Weight (Approx.)
6,500 lbs
