Machine Specs
Used

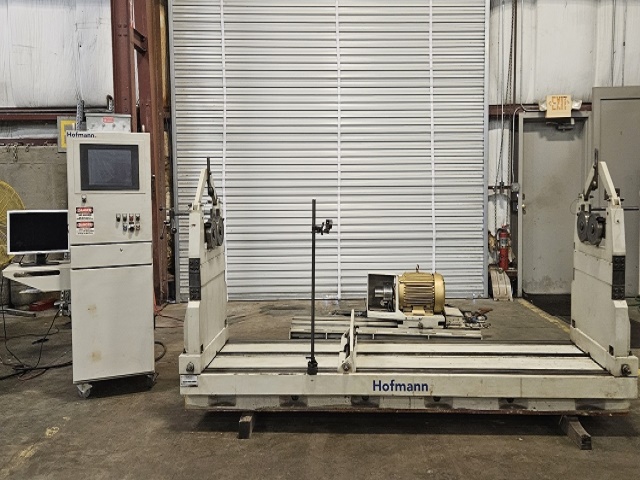

Hofmann Balancing Machine
Capacity & Envelope
Max Overload Weight of Rotor (Symmetrical)
17,000 lbs
Max Normal Operating Weight of Rotor
15,000 lbs
Max Normal Weight per Pedestal
7,500 lbs
Minimum Weight of Rotor
50 lbs
Max Diameter of Rotor (Over Bed)
69″
Max Diameter of Rotor (Over Belt Tensioner)
50″
Max Length Between Bearing Centers
106″
Min Length Between Bearing Centers
15″
Bearing Journal Diameters
1.25″ – 13.4″ (incl. optional roller bearing sets)
Performance & Accuracy
Balancing Speeds
Infinitely variable (dependent on drive)
Accuracy (Displacement of C.G.)
±10 microinch
Sensitivity
±0.25 gmm/kg
Drive & Motor
Drive Pulley Diameter (Large)
6.0″
Drive Pulley Diameter (Small)
3.5″
Motor Power
20 HP
Electrical
Power
460 V, 3-phase, 60 Hz
