Machine Specs

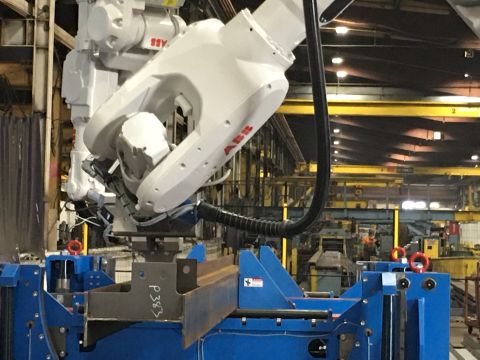

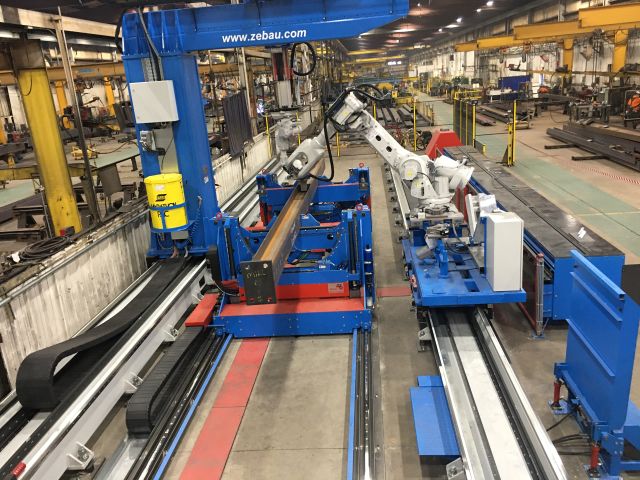

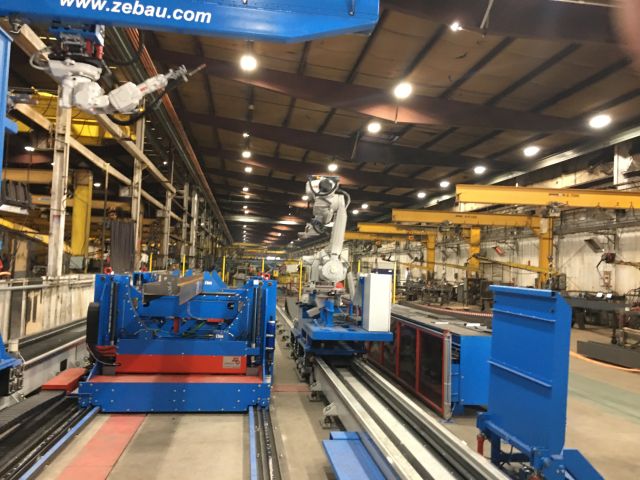

Zeman Z6 (SBA) Steel Beam Assembly Welding Cell
Beam size capacities
Height
150 mm min – 1100 mm max
Width
80 mm min – 500 mm max
Length
3000 mm min – 12000 mm max
Beam types supported
H-beams (range)
150 mm min – 1100 mm max
Welded H-beams
Yes
Corrugated SIN beams
Yes (optional)
Rectangular / square tubes (range)
80 mm × 80 mm min – 500 mm × 500 mm max
U-profiles
Yes
Tapered H-beams (range)
250 mm min – 1000 mm max (optional)
Corner frame application
Yes (optional)
Weight limits
Added parts
0–200 kg
Beam weight
0–6000 kg
Added parts dimensions
Plates (min)
50 mm × 100 mm × 3 mm
Plates (max)
800 mm × 1400 mm × 60 mm
Speeds & welding
Processing speed
250 mm/sec (10″/sec)
Welding
Close-up spot welds; curved welding radius
Welder
Fronius TPS 500i
Controls & features
- ABB robots (2) with 500 lb part capacity
- SBA parts laser scanner
- Control: Siemens
- Software: Siemens SIMATIC S7 PLC
