Machine Specs
Used

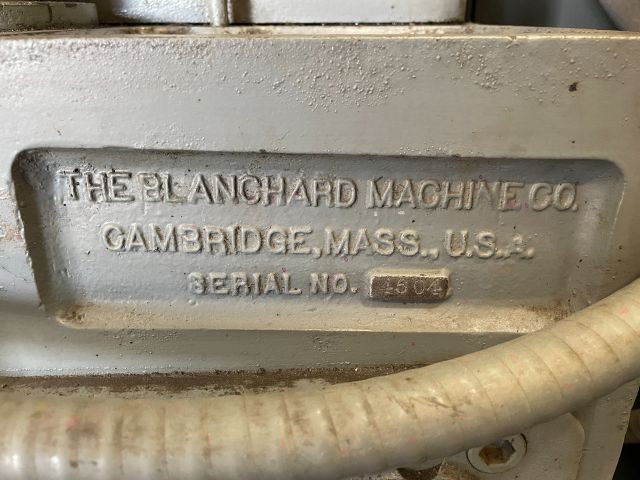

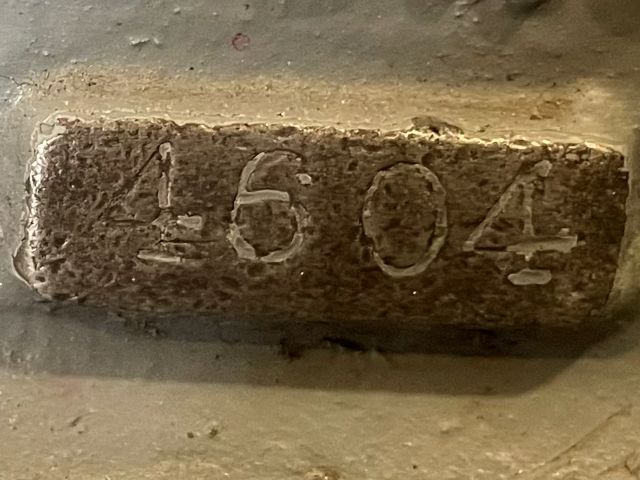

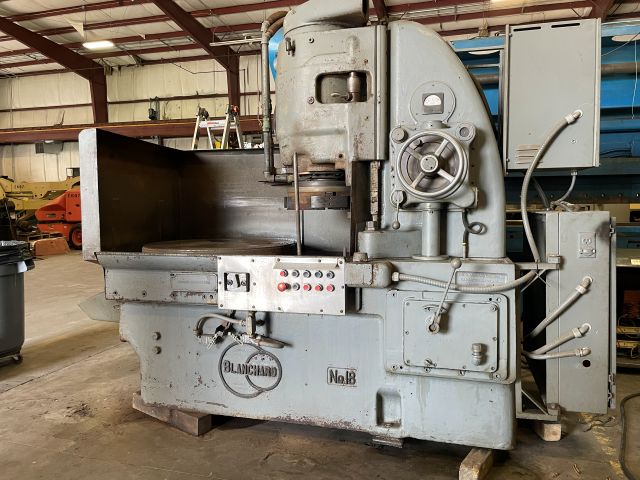

Blanchard 36″ Vertical Spindle Rotary Surface Grinder
Machine Details
Hours
7,865

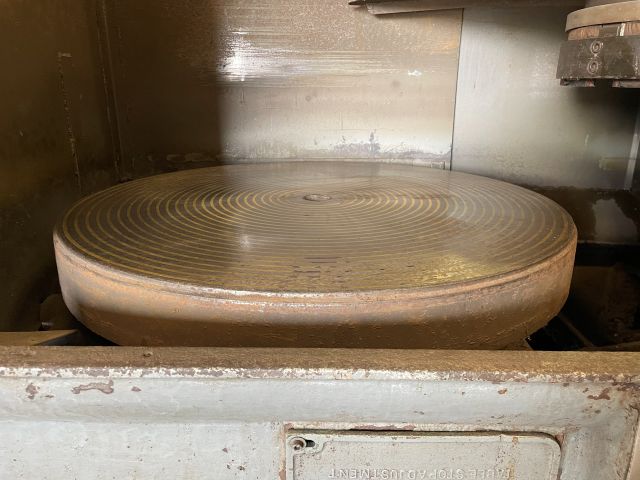

Magnetic Chuck Diameter
36″
Chuck Life
3/8″
Capacity & Speeds
Max Clearance, Chuck to Wheel
12″ w/ cyl. wheel, 11″ w/ seg. wheel
Chuck Speeds
6, 9, 12, 18, 25, & 33 RPM
Spindle Speed
720 RPM
Coolant & Base
Wet Base Capacity
150 gal.
Coolant
Internal coolant
Equipped With
- Segmented wheel installed
- Wheel dresser
- Electromatic Neutrifier remote control
- Internal coolant
Electrical
Electrical
240/480 VAC, Three Phase
Currently Wired
240V
Spindle Drive Motor
25 HP
Footprint & Weight
Overall Size (Approx.)
110″ L-R × 60″ F-B × 85″ H
Weight (Approx.)
12,000 lbs
