Machine Specs

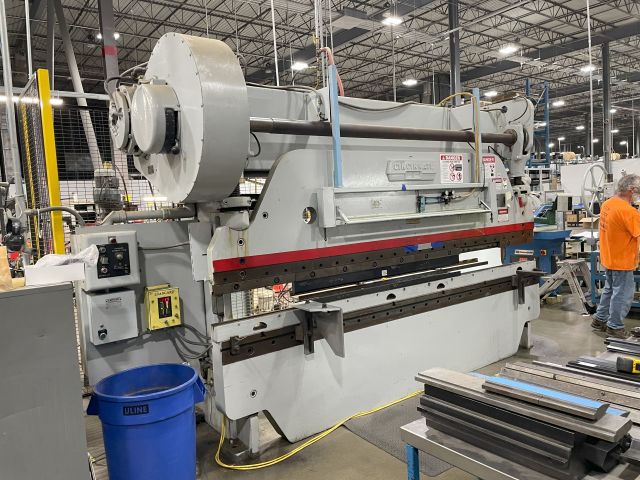

Cincinnati Series 5 Mechanical Press Brake
Capacity
Capacity
135 tons × 12′
Mid Stroke
90 tons
Frame, Stroke & Openings
Between Housings
10′ – 5.75″
Throat Depth
8″
Stroke
3″
Ram Adjustment
5″
Die Space (SDAU)
12″
Die Block
12′
Power
Main Motor
10 HP — 240/480 V, 3-phase (currently wired 480 V)
Equipped With
- Pneumatic clutch
- Foot pedal
- Power ram adjust
- Brake overrun monitor
Footprint & Weight
Dimensions (Approx.)
200″ L-R × 80″ F-B × 117″ H
Weight (Approx.)
23,000 lbs
